Leica

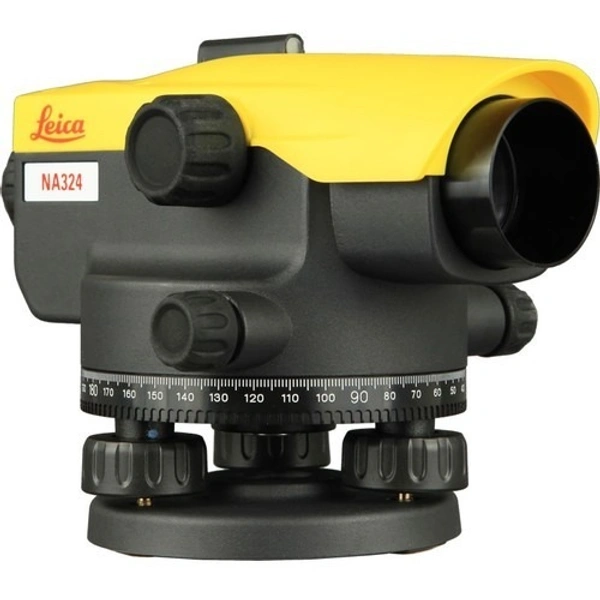

Leica NA324 Auto Level
₹ 12,500 / Unit
₹ 16,500
24%
Leica NA324 Auto Level
Accuracy: 2mm
Magnification: 24x
| Specifications of Leica NA 324 Automatic Level | |
|---|---|
| Standard deviation for 1 km double levelling | ±2.0mm (ISO 17123-2 certified) |
| Telescope | |
| Telescope image | Upright |
| Magnification | 24x |
| Objective aperture | 36mm |
| Shortest target distance from instr. axis | < 1.0m |
| Field of view at 100 m | < 2.1m |
| Multiplication factor | 100 |
| Additive constant | 0 |
| Compensator | |
| Working range | ± 15′ |
| Setting accuracy (standard deviation) | <0.5″ |
| Sensitivity | 8’/2 mm |
| Horizontal Circle | |
| Graduation | 360° |
| Graduation interval | 1° |
| Weight (net) | 1.5 kg |
| Operating temperature range | –20° C to +40° C |
| Protection class | IP54 dust and splash water protected |
